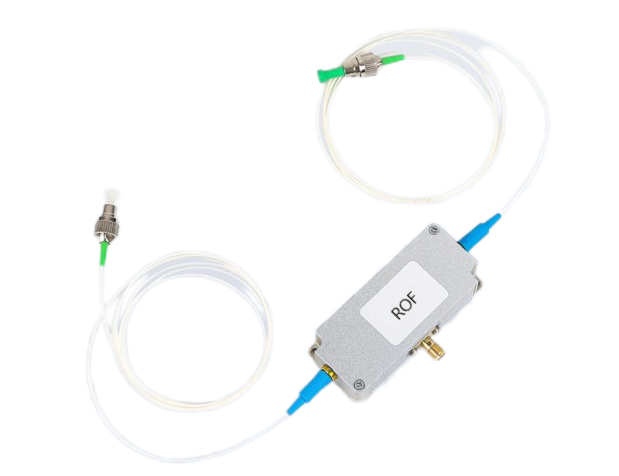

Rof Electro-optic AOM modulator Fiber-coupled acousto-optic modulator

Short Description:

Rof Electro-optic AOM modulator Fiber-coupled acousto-optic modulator. This product series is a fiber optic acoustooptic modulator, and the preparation of acoustooptic crystals, development of driving sources, and coupling packaging have all achieved localization. The customizable wavelength range covers the visible light to near-infrared region, and the product is packaged in a compact and sturdy all metal seal, with high reliability and temperature stability. The series of products is rich, including dual crystal cascade, dual output, and integrated fiber optic acousto-optic modulator with driver.

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

1.Fast response time
2.Low insertion loss
3.High extinction ratio
4.High reliability

Rof Electro-optic modulator Fiber-coupled acousto-optic modulator

Application

Industrial laser
Ultrafast laser
Fiber optic sensing
Cold atomic physics

Parameter

Technical Parameters	Technical Indicators
Working Wavelength	400nm-2000nm
Shift Frequency	0~1000MHz
Modulation Frequency	0~60MHz
Extinction Ratio	>50dB
Type of Fiber	PM/SM

About us

Rofea Optoelectronics offers a range of commercial products including Electro Optical Modulators, Phase Modulators, Photo Detectors, Laser Sources, DFB Lasers, Optical Amplifiers, EDFAs, SLD Lasers, QPSK Modulation, Pulsed Lasers, Photo Detectors, Balanced Photo Detectors, Semiconductor lasers, laser drivers, fiber couplers, pulsed lasers, fiber amplifiers, optical power meters, broadband lasers, tunable lasers, optical delay lines, electro-optic modulators, optical detectors, laser diode drivers, fiber amplifiers, erbium-doped fiber amplifiers and laser light sources.

The LiNbO3 phase modulator is widely used in high-speed optical communication system, laser sensing and ROF systems because of well electro-optic effect. The R-PM series based on Ti-diffused and APE technology, has stable physical and chemical characteristics, which can meet requirement of the most applications in laboratory experiments and industrial systems.
