Rof Intensity Modulator thin film lithium niobate modulator 20G TFLN modulator

Short Description:

The ROF-TFLN-20G series electro-optic intensity modulator is based on thin film lithium niobate waveguide technology and M-Z push-pull structure, with low half wave voltage and high operating bandwidth. The bias (DC) end adopts thermal tuning method, which can greatly reduce temperature drift and work stably for a long time at any operating point. Compared with bulk modulators, it has a smaller volume, lower power consumption, and better stability.

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

l Extinction ratio>25dB (typical value 30dB)

l High stability

l High modulation bandwidth

l Low half wave voltage

Application

l Microwave photons

l High speed optical communication

l Quantum Communication

Rof EOM Intensity Modulator 20G thin film lithium niobate modulator TFLN modulator

Parameter

Parameter		Symbol	Min	Typ	Max	Unit
optical parameters
working wavelength		l	1525		1565	nm
insertion loss		IL		4.5	5.5	dB
Optical Return Loss		ORL			-25	dB
Switch extinction ratio @ DC		ER@DC	25	30		dB
optical fiber	input terminal		Panda PM1550
optical fiber	output end		Panda PM1550
fiber optic interface			FC/PC、FC/APC or user specified
Electrical parameters
Working bandwidth (-3dB)		S₂₁	20	25		GHz
RF half wave voltage Vpi		Vπ@1GHz			3.5	V
Biased half wave power Ppi		Pπ@Bias		45	50	mW
Maximum input voltage at the bias end					8	V
Electric return loss		S₁₁		-12	-10	dB
RF input impedance		Z_RF		50		W
Electrical interface			2.92mm femal

Extreme conditions

Parameter	Symbol	Unit	Min	Typ	Max
Input optical power @ 1550nm	P_in,Max	dBm			20
RF input power		dBm			23
Bias end bias voltage	Vbias	V	0		8
Operating Temperature	Top	ºC	-10		60
Storage temperature	Tst	ºC	-40		85
humidity	RH	%	5		90

Package size（mm）

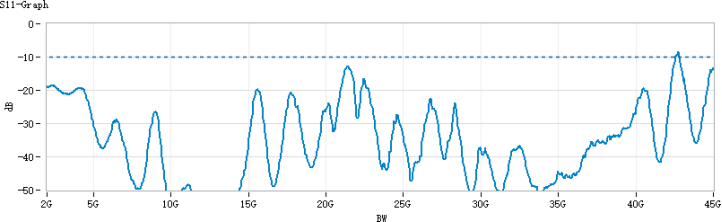

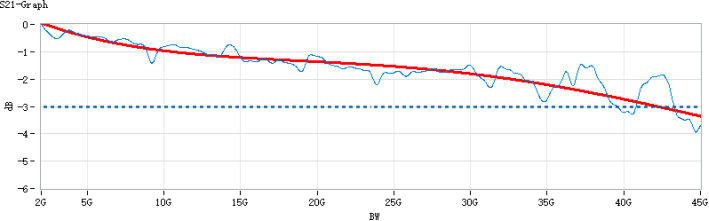

Characteristic curve

Order information

Thin film lithium niobate 20 GHz intensity modulator

ROF	TFLN	XX	XX	XX
	Thin film lithium niobate intensity modulator	operating bandwidth：20G---20GHz	Input/output fiber optic：PP---PMF-PMF	connection：FA---FC/APCFP---FC/PCSP---user specified
