Rof Electro-optical modulator AOM acousto-optic modulator R-532

Short Description:

Rof Electro-optic AOM modulator Fiber-coupled acousto-optic modulator. This product series is a fiber optic acoustooptic modulator, and the preparation of acoustooptic crystals, development of driving sources, and coupling packaging have all achieved localization. The customizable wavelength range covers the visible light to near-infrared region, and the product is packaged in a compact and sturdy all metal seal, with high reliability and temperature stability. The series of products is rich, including dual crystal cascade, dual output, and integrated fiber optic acousto-optic modulator with driver.

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

1.Fast response time
2.Low insertion loss
3.High extinction ratio
4.High reliability

Rof Electro-optic modulator Fiber-coupled acousto-optic modulator

Application

Industrial laser
Ultrafast laser
Fiber optic sensing
Cold atomic physics

Parameter

Parameter	Unit	Min	Max	Tpy	Comments
Material				TeO2
Wavelength	nm	510	550	532
Average optical power handling	W		0.5
Ultrasonic velocity	m/s			4200
InsertionLoss	dB		3
Extinction ratio	dB	50
PER	dB	-
ReturnLoss(RF ON)	dB	40
Rise/Fall-time	ns		50
Frequency	MHz			100
Frequency bandwidth	dB			-3dB@100M±5Mhz
RF power	W		0.5
VSWR				1.2:1
InputImpedance	Ω			50
RF connector				SMA
Fiber Type				HP-460
Fibre Length	m			1
Fiber connector				FC/APC
Operating temperature	℃			-10~60
StorageTemperature	℃			-30~70

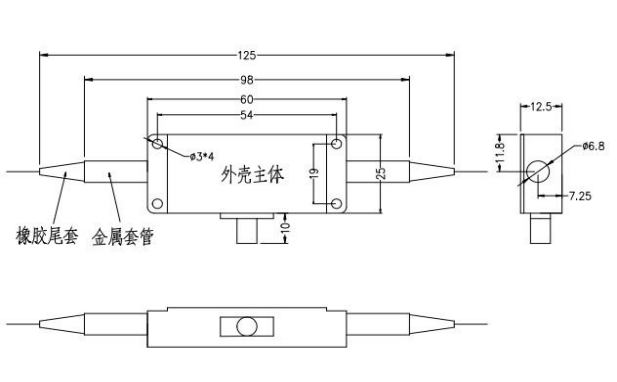

Size
