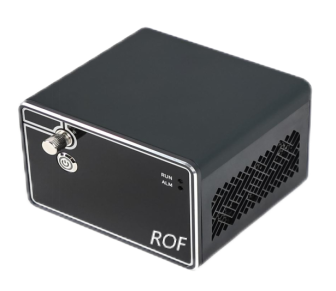

ROF InGaAs Photondetector free-running single-photon detector
Feature
High detection efficiency
Low dark count rate
Low ask jitter
Free-running operation
TDC function (Optional)
Application
Laser ranging/LiDAR
Fluorescence lifetime detection
Quantum Key Distribution/Quantum optics
Single photon source calibration
Photoexcitation detection
Parameters
| Technical Parameters | Technical index | |
| High-end version | Standard edition | |
| Product Model | QCD600B-H | QCD600B-S |
| Spectrum Response | 900m~1700m | |
| Detection Efficiency | 35% | 25% |
| Dark Count Rate (Typical Value) | 4Kcps | 2Kcps |
| Post-pulse Probability@ Dead Time 5PS | 10% | 5% |
| Time Jitter | 100ps | 150ps |
| Dead Time Regulation Cluster | 0.1Ms~60us | |
| Output Signal Level | LVTTL | |
| Output Signal Pulse Width | 15ns | |
| Output Interface | SMA | |
| The Optical Fiber is Synchronized | MMF62.5 | |
| Fiber Interface | FC/UPC | |
| Start-up Cooling Time | <3min | |
| TDC Accuracy (Customizable) | 10ns,0.1ns | |
| Input Voltage | 15V | |
| Size | 116mmX107.5mm X80mm | |
*please contact our seller if you have special requirements
