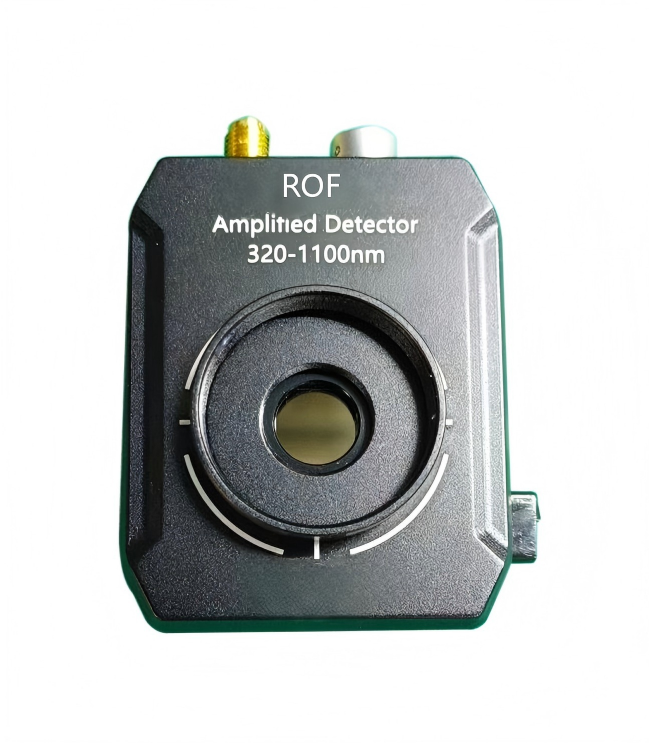

ROF Si adjustable gain photodetector Silicon Photodetector
Feature
l Spectral range: 320nm~1100nm
l 3dB bandwidth: up to 11MHz
l Maximum gain setting: 4.75×106 V/A (high-impedance load)
l Low noise
l Spatial optical coupling input, fiber coupling optional
Application
l Weak light detection
l Fiber optic sensing system
l Space optical communication
Ordering information
|
Model Parameter |
ROF-PR-11M-B |
ROF-PR-13M-A |
|
Response frequency |
DC-11MHz |
DC-13MHz |
|
Type |
Silicon(Si) |
Indium Gallium Arsenide(InGaAs) |
|
Sensitivity to light 1 |
320nm~1100nm |
900nm~1700nm |
|
Photosensitive area |
Ø9.8 mm (75.4 mm2 ) |
Ø1.0 mm (0.8 mm2 ) |
Note 1: Approximate value; The actual wavelength value may vary
Parameters
|
Performance Specifications 2 (KG-PR-11M-B) |
|||
|
0dB setting |
40dB setting |
||
| Gain (high resistance>5k Ω) |
1.50 x 103 V/A ±2% |
Gain (high resistance>5k Ω) |
1.50 x 105 V/A ±2% |
| Gain (50 Ω) |
0.75 x 103 V/A ±2% |
Gain (50 Ω) |
0.75 x 105 V/A ±2% |
| 3dB bandwidth 3 |
11 MHz |
3dB bandwidth |
150K |
| Noise (RMS) |
400uV |
Noise (RMS) |
500uV |
| bias |
±8 mV (Typ.) ±20mV (Max.) |
bias |
±8 mV (Typ.) ±20mV (Max.) |
|
10dB setting |
50dB setting |
||
| Gain (high resistance>5k Ω) |
4.75 x 103 V/A ±2% |
Gain (high resistance>5k Ω) |
4.75 x 105 V/A ±2% |
| Gain (50 Ω) |
2.38 x 103 V/A ±2% |
Gain (50 Ω) |
2.38 x 105 V/A ±2% |
| 3dB bandwidth |
1.4 MHz |
3dB bandwidth |
50K |
| Noise (RMS) |
350uV |
Noise (RMS) |
520 uV |
| bias |
±8 mV (Typ.) ±20mV (Max.) |
bias |
±8 mV (Typ.) ±20mV (Max.) |
|
20dB setting |
60dB setting |
||
| Gain (high resistance>5k Ω) |
1.50 x 104 V/A ±2% |
Gain (high resistance>5k Ω) |
1.50 x 106 V/A ±2% |
| Gain (50 Ω) |
0.75 x 104 V/A ±2% |
Gain (50 Ω) |
0.75 x 106 V/A ±2% |
| 3dB bandwidth |
1.0MHz |
3dB bandwidth |
20K |
| Noise (RMS) |
380uV |
Noise (RMS) |
760 uV |
| bias |
±8 mV (Typ.) ±20mV (Max.) |
bias |
±8 mV (Typ.) ±20mV (Max.) |
|
30dB setting |
70dB setting |
||
| Gain (high resistance>5k Ω) |
4.75 x 104 V/A ±2% |
Gain (high resistance>5k Ω) |
4.75 x 106 V/A ±2% |
| Gain (50 Ω) |
2.38 x 104 V/A ±2% |
Gain (50 Ω) |
2.38 x 106 V/A ±2% |
| 3dB bandwidth |
400K |
3dB bandwidth |
10K |
| Noise (RMS) |
380uV |
Noise (RMS) |
1.43mV |
| bias |
±8 mV (Typ.) ±20mV (Max.) |
bias |
±8 mV (Typ.) ±20mV (Max.) |
Note 2: ROF-PR-11M-B has a 50 Ω series terminating resistor (i.e. connected in series with the amplifier output). This forms a voltage divider with any load impedance (such as a 50 Ω load splitting the signal in half).
Note 3: Conduct the test at a wavelength of 850nm. For near-infrared wavelengths, the rise time of photodiode components will become slower, which may limit the effective bandwidth of the amplification detector
General Parameters
|
Project |
sym |
value |
|
Detector type |
- |
Si |
|
Photosensitive surface |
- |
Ø9.8 mm (75.4 mm2 ) |
|
Peak wavelength |
λp |
960 nm (Typ.) |
|
Peak response |
Â( λ p) |
0.72 A/W (Typ.) |
|
Output impedance |
- |
50Ω |
|
Maximum output current amplitude |
Imax |
100mA |
|
Maximum output voltage amplitude |
Vmax |
10.00V @ high impedance 5.00V@50 Ω load |
|
Load range |
- |
>50 Ω |
|
Range of gain adjustment |
- |
0dB~70dB |
|
Gain step |
- |
10 dB |
|
Power switch |
- |
side |
|
Gain switch |
- |
8th gear |
|
Output |
- |
SMA (DC Coupling) |
|
Product dimensions |
- |
66.6mm*52.2mm*22.4mm |
|
PD surface depth 4 |
- |
6.1mm |
|
Weight (excluding accessories) |
- |
70g |
|
Accessories |
- |
SM1T1 coupling, SM1RR retaining ring |
|
Power supply |
- |
AC-DC ± 12V adapter |
|
Power supply wattage |
- |
6 W 100V/120V/230V,50-60 Hz |
Note 4: The approximate height from the surface of the housing structure to the surface of the photodiode may result in installation errors in practice.
Limiting condition
|
Parameter |
sym |
Unit |
Min |
Typical |
Max |
| Input optical power |
Pin |
mW |
- |
- |
25 |
| Working Voltage |
Vop |
V |
±10.8 |
±12 |
±13.2 |
| Operating Temperature |
Top |
ºC |
-10 |
- |
60 |
| Storage temperature |
Tst |
ºC |
-40 |
- |
85 |
| humidity |
RH |
% |
5 |
- |
90 |
Curve
Characteristic curve
ROF-PR-11M-B Sensitivity response diagram
Package size(mm)
