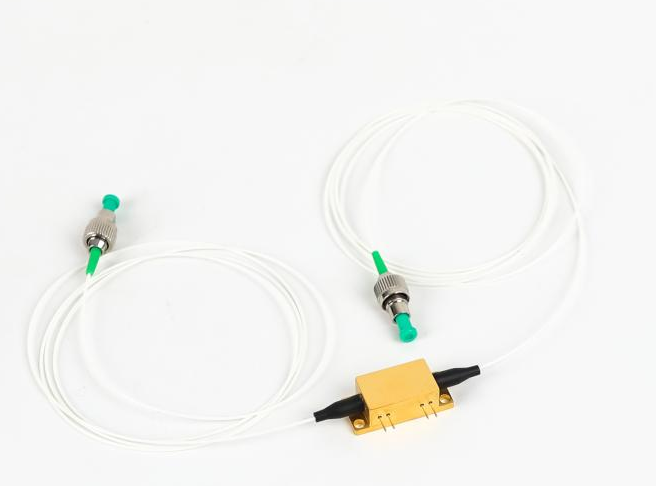

Rof fiber laser systems fiber amplifier High-efficiency Narrowband Filter
Characteristics
Fiber amplifier
WDM&DWDM system
Optical fiber equipment
Fiber laser
Application field
Wide passband range
Low insertion loss
High operating power
Stable operating characteristic
Parameter
| Technical Parameter | Technical Index | ||
| Center Operating Wavelength(nm) | 518.36±0.05 | 854.2±0.05 | 1550.12±0.1 |
| Set Temperature(℃) | / | / | / |
| Insertion Loss(Max)(dB) | ≤4 | ≤2.2 | ≤1.55 |
| Total Coupling Efficiency(Min)(dB) | ≥40% | ≥60% | ≥70% |
| Power Handling(Max)(mW) | 100 | 200 | 300 |
| Pigtail Type | 0.9mm loose tube | 0.9mm loose tube | 0.9mm loose tube |
| Fiber Type | Nufern 460 HP | Nufern 780 HP | G657A2/SMF-28e |
| Connector Type | FC/APC | FC/APC | FC/APC或FC/UPC |
| Fiber Length(m) | ≥1.0 | ≥1.0 | ≥1.0 |
| Operating Temperature(℃) | 0~70 | 0~70 | 0~70 |
| Storage Temperature(℃) | -40~85 | -40~+85 | -40~85 |
*If you have any special requirements, please contact our sales personnel
