Rof-EDFA-HP High power output fiber amplifier Optical Amplifier

Short Description:

Rofea Optoelectronics independently developed Rof-EDFA series products are specially designed for the laboratory and factory test environment of optical fiber power amplification equipment, internal integration of high-performance pumping laser, high-gain erbium-doped fiber, and unique control and protection circuit, to achieve low noise, high stability output, AGC, ACC, APC three working modes can be selected. It is widely used in optical fiber sensing and optical fiber communication. The benchtop fiber amplifier has LCD display, power and mode adjustment knobs for easy operation, and provides an RS232 interface for remote control. Module products have the characteristics of small size, low power consumption, easy integration, programmable control and so on.

Send email to us DOWNLOAD

Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

Feature

Low noise index
Low power consumption
Programmable control
Multiple modes are available
Desktop or module optional
Automatic shut off pump protection

Application

• An amplifier can boost the (average) power of a laser output to higher levels (→ master oscillator power amplifier = MOPA).
•It can generate extremely high peak powers, particularly in ultrashort pulses, if the stored energy is extracted within a short time.
•It can amplify weak signals before photodetection, and thus reduce the detection noise, unless the added amplifier noise is large.
•In long fiber-optic links for optical fiber communications, the optical power level has to be raised between long sections of fiber before the information is lost in the noise.

Parameters

Parameter			Unit	Minimum	Typical	Maximum
Operating wavelength range			nm	1540		1565
Input signal power range			dBm	-10		10
Saturated output optical power			dBm			33
Saturation output optical power stability			dB			±0.3
Noise index @ Input 0 dBm			dB		5	6.0
Input optical isolation			dB	30
Output optical isolation			dB	30
Input return loss			dB	40
Output return loss			dB	40
Polarization dependent gain			dB		0.3	0.5
Polarization mode dispersion			ps			0.3
Input pump leakage			dBm			-30
Output pump leakage			dBm			-30
Operating voltage	module		V( AC )	80		240
Operating voltage	desktop		V(DC)	10	12	13
Fiber type				SMF-28
Output interface				FC/APC
Communication interface				RS232

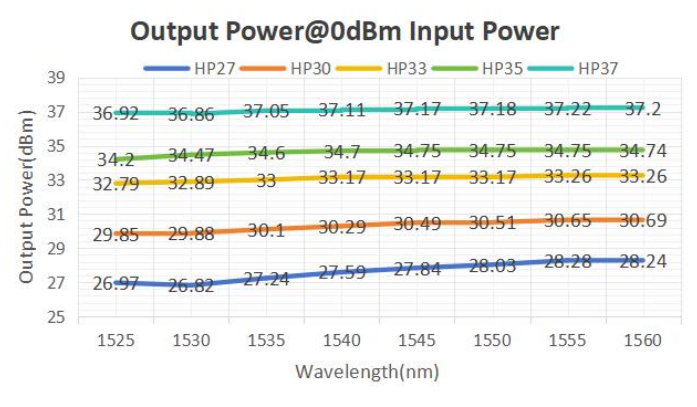

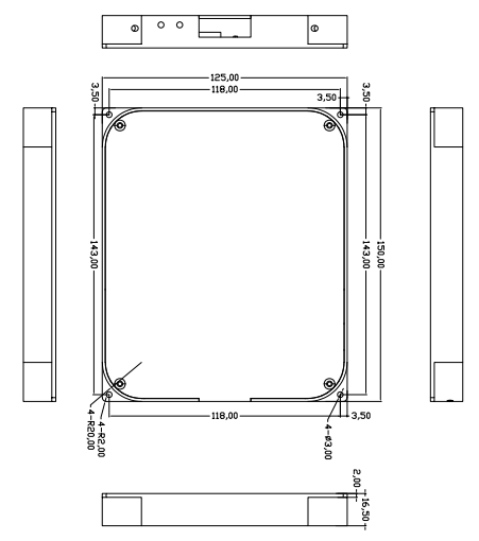

Package size		module	mm	320×220×90
Package size		desktop	mm	150×125×16

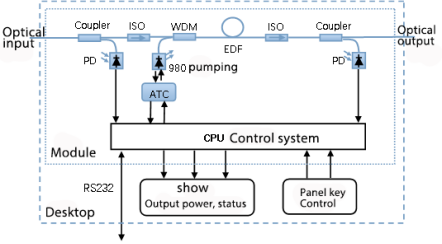

Principle and structure diagram

Product list

Model	Description	parameter
ROF-EDFA-P	Ordinary power output	17/20/23dBm output
ROF-EDFA-HP	High power output	30dBm/33dBm/37dBm output
ROF-EDFA-A	Front-end power amplification	-35dBm/-40dBm/-45dBm input
ROF-YDFA	Ytterbium-doped fiber amplifier	1064nm, The highest 33dBm output

Ordering information

ROF

EDFA

Erbium Doped Fiber Amplifier

HP--High power output

Output power:

30---30dBm

33---33dBm
37---37dBm

Package size:

D---desktop

M---module

Optical fiber connector:

FA---FC/APC

FP---FC/PC

SP---User assignment
