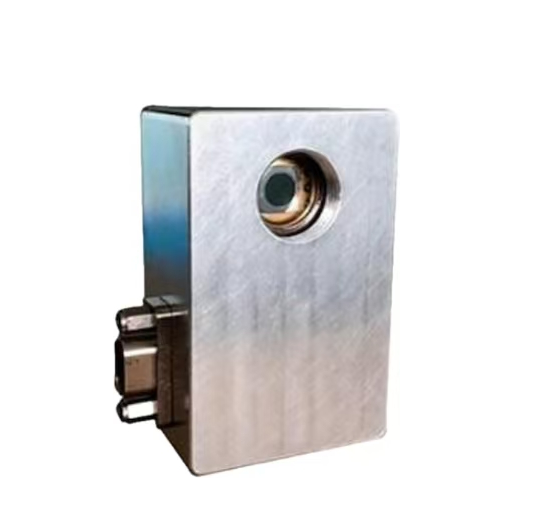

Rof-QPD series APD/PIN Photodetector Four-quadrant photoelectric detection module 4 quadrant Photodetector
Feature
l Spectral range 400~1700nm
l Fast response speed
l Optional photosensitive surface
l Integrate 4 independent amplification circuits
l Low noise
l Compact structure
l Single power supply
Application
l Laser collimation
l Laser guidance
l Space optical communication
l High precision angle measurement
Parameters
| Product Type |
Four quadrant PIN optical detection module |
|||
| Parameter |
R-QPD-B-20K |
R-QPD-B-20M |
R-QPD-A-20K |
R-QPD-A-20M |
| Detector type |
Si/PIN |
InGaAs/ PIN |
||
| Light input |
Free Space |
Free Space |
||
| Wavelength range |
400~1100nm |
800~ 1700nm |
||
| Responsiveness |
0.64A/W@900nm |
0.9A/W@1550nm |
||
| Diameter of photosensitive surface |
7.98mm |
3mm |
||
| Unit gap |
42um |
45um |
45um |
|
| Bandwidth (3dB)* |
>20KHz |
>20MHz |
>20KHz |
>20MHz |
| Conversion gain* |
100K V/W@900nm |
2.5K V/W@900nm |
10KV/W@ 1060 nm |
10K V/W@ 1060 nm |
| Rise time |
17us |
35ns |
17us |
18ns |
| Saturated optical power* |
50uW |
2mW |
0.5mW |
0.5mW |
| Coupling method |
DC coupling |
DC coupling |
DC/AC coupling |
|
| Output impedance |
50Ω |
50Ω |
50Ω |
|
| Total output noise voltage* |
<1mVpp |
<5mVpp |
<2mVpp |
<30mVpp |
| Maximum output voltage |
5V |
|||
| Operating voltage |
DC 12V @<150mA |
|||
| Signal output port |
J30J DB15 connector, equipped with adapter board to SMA interface |
|||
| Size |
58x42x20mm |
|||
Optional accessories
| Indicator | Parameter |
| Number of channels | four |
| Maximum input signal bandwidth | 10KHz |
| sampling rate | Maximum 4K SPS |
| Data update frequency | Typical 10Hz, maximum 4KHz |
| Input voltage range | ±5V |
| ADC bits | 16bit |
| ADC conversion nonlinearity | ±0.2 LSB |
| Data transmission interface | Default USB 2.0, optional RS232 |
| power supply voltage | +5V, mini USB interface |
| power consumption | <1W |
| Operating temperature | -10℃~+50℃ |
| Storage temperature | -20℃~+80℃ |
| Mechanical dimensions | 90mm*70mm*16mm |

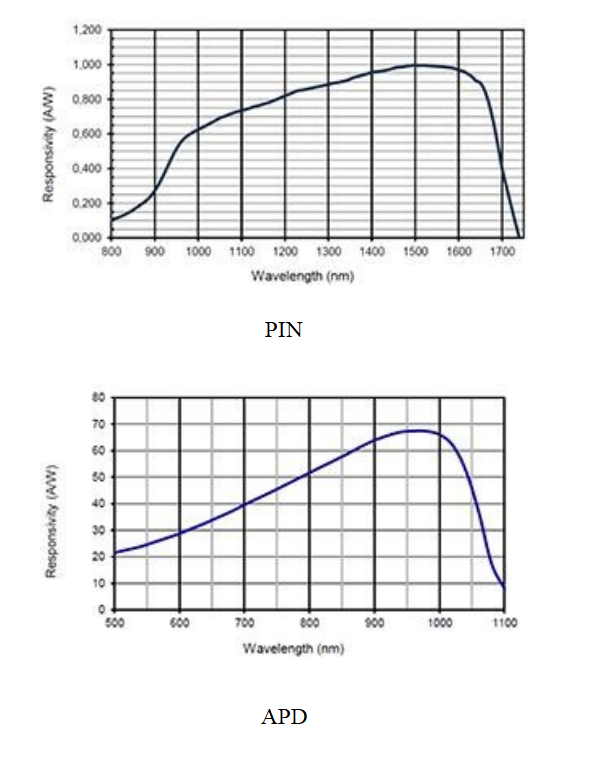

Curve
Characteristic curve
Ordering information
| ROF | QPD | X | X |
| Four-quadrant photodetector | Detector type：APD PIN | Response wavelength：A-400-1100nm
B-800-1700nm |
* please contact our seller if you have special requirements
