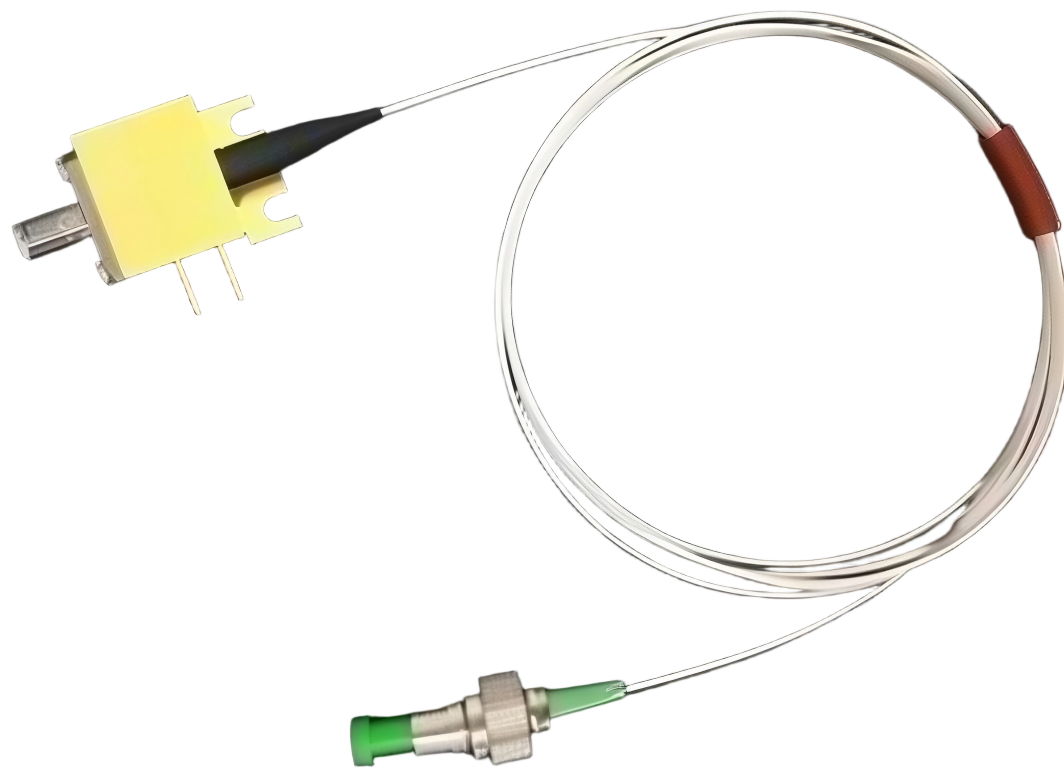

ROF-PD-70 InGaAs Photoreceiver ultra wideband Photodetector
Feature
Ultra high bandwidth
High light responsivity
Low dark current
Low port standing wave
Application
Parameters
Note: Unless otherwise specified, the test temperature is 25 ℃.
| parameter | Sym | Test conditions |
Min |
Typ |
Max |
Unit |
| Operating Wavelength | λ | 1260 | 1550 | 1570 | nm | |
| Responsiveness | R | P 光=0dBm ，Vr =+2 V ，
λ=1550 nm |
0.6 | A/W | ||
| dark current | Id | Vr =+2 V | 20 | 60 | nA |
| 3 dB bandwidth | BW | P 光=0dBm ，Vr =+2 V ，
λ=1550 nm |
60 | 67 | GHz | |
| RF reflection loss |
S22 |
P light=0dBm ，Vr =+2V ，
within the scope of 10M-67GHz |
-10 |
-8 |
dB |
|
| Saturated optical power | Psat | Vr =+2 V ，λ=1550nm | 7 | dBm |
Maximum absolute rated value
Maximum absolute rated value
| parameter name | Sym | Rated value | Unit |
| optical power | Ps | 10 | dBm |
| Positive bias voltage | Vr | 5 | V |
| Operating Temperature | Top | -40 ~ +70 | ℃ |
| Storage temperature | Tstg | -55 ~ +85 | ℃ |
Typical Response Curves :
The packages (Unit: mm)
Dimensions and Pin Definitio
| PIN |
Functional Description |
| BIAS |
+1-3V (recommended+2V) |
| GND |
grounding |
|
Fiber optic interface |
SMF fiber/PMF fiber, FC/APC connector, Pin ≤ 10dBm (recommended ≤ 0-7dBm) |
| RF interface |
1.85mm， mother |
Ordering information
| R | PD | 70G | A | XX | XX | XX |
| Photodetector | -3dBbandwidth 70---70 GHz | Operatingwavelength：1260~1570 nm | SM----single-mode fiber | Connector type FP ---FC/PCFA ---FC/APC | Couplingmethod ： DC |
Precautions for use
1.Necessary ESD protection measures should be taken to avoid electrostatic damage.
2.Do not directly pull the tail fiber to avoid damaging the device.
3.Pay attention to keeping the optical connector clean to avoid contamination with dust or other foreign objects that may affect its performance.
