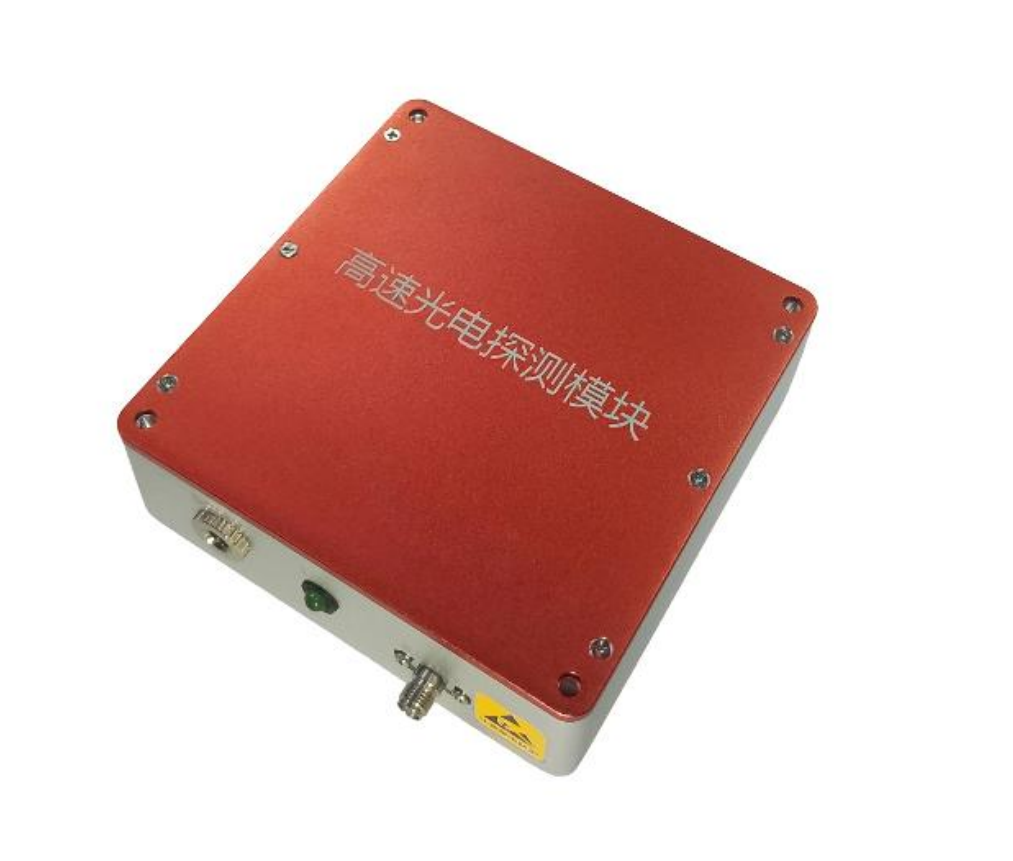

ROF-PD15 70G InGaAs Photoreceiver High Speed InGaAs Photodetector Module
Feature
Application
Parameters
| Parameter | Symbol | Unit | Min | Typ | Max | Test condition |
| Response wavelength | nm | 1260 | 1570 | |||
| -3dB Bandwidth | BW | GHz | 68 | 70 | ||
| Dark circuit | Id | nA | 20 | 60 | 25ºC | |
| Responsiveness | R | A/W | 0.5 | 0.6 | λ=1550nm | |
| Rise time | Tr | ps | 5 | |||
| Polarization dependent loss | PDL | dB | 0.02 | 0.05 | ||
| Optical return loss | ORL | dB | -8 | -6 | ||
| Gain | G | V/W | 30 | - | ||
| Electrical return loss | S22 | dB | -10 | -8 | ||
| output impedance | Z | 50 |
| Operating voltage | Vop | V | DC 12V |
| Dimensions | LxWxH | mm | 103.4 x 101.4 x 34 |
| Input fiber | Single-mode fiber multimode fiber | ||
| Fiber connector | FC/PC 、FC/APC | ||
| Output interface | V(f) | ||
limit condition
| Parameter | Symbol | Unit | Min | Typ | Max |
| Input optical power | Pin | mW | 5 | ||
| Operating voltage | Vop | V | - | 12 | - |
| Operating temperature | Top | ºC | -10 | 60 | |
| Storage temperature | Tst | ºC | -40 | 85 | |
| Humidity | RH | % | 5 | 90 |
Typical Response Curves :
The packages (Unit: mm)
Ordering information
| R | PD | 70G | A | XX | XX | XX |
| Photodetector | -3dBbandwidth 70---70 GHz | Operatingwavelength：
1260~1570 nm |
SM----single-mode fiber | Connector type FP ---FC/PCFA ---FC/APC | Couplingmethod ： DC |
