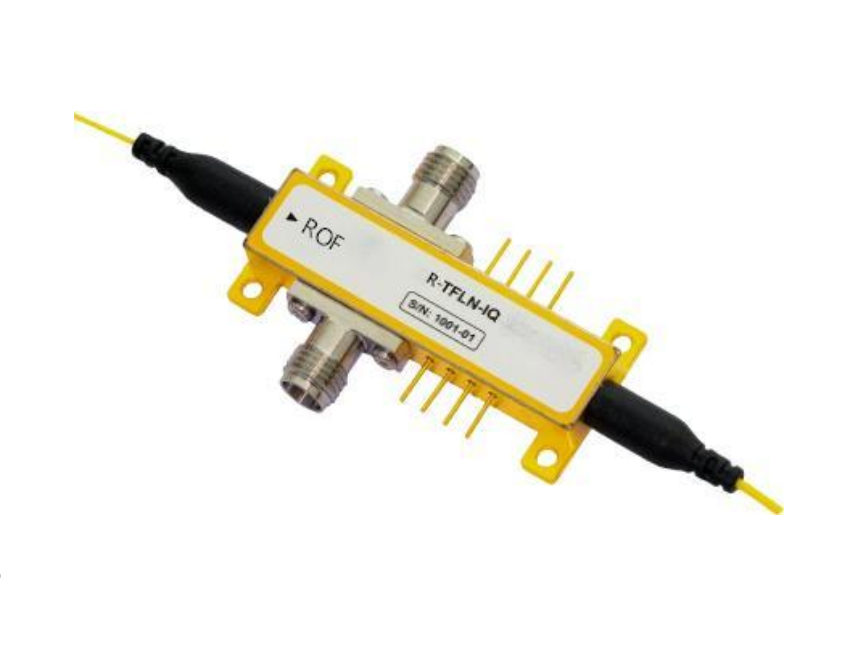

ROF Optical Modulator lithium niobate modulator IQ modulator
Feature
High Bandwidth
Low Insertion loss
Low drive voltage
Small size
High stability
Application
Long-distance coherent communication, microwave photonics, etc.
Specifications
| Parameters | Symbol | Performance | Unit |
| Operating Wavelength | λ | 1530~1565 | nm |
| Optical Insertion Loss | IL | ≤ 5.5 | dB |
| Optical Extinction Ratio | ER | ≥ 25 | dB |
| Optical Return Loss | RL | ≤ -26 | dB |
| Optical Input Power | Pin | ≤ 200 | mW |
| Bandwidth (3dB) | BW | 20/40 | GHz |
| RF Half-wave Voltage@50KHz | Vπ | ≤ 3.5 | V |
| RF Return Loss | S11 | ≤ -10 | dB |
| RF Input Power | Sin | ≤ 23 | dBm |
| Heater Bias Half-wave Power | Pπ | 50(30) | mW |
| Heater Bias Voltage | Uheater | < 8 | V |
| Operating Temperature | TO | -55~85 | ℃ |
| Storage Temperature | TS | -55~85 | ℃ |
Characteristic curve
Size
|
Pin |
Function |
Description |
|
IN |
Input Fiber |
PM 1550 Polarization-maintaining fibers ，length 0.6m |
|
OUT |
Output Fiber |
SM 1550 Standard single mode fiber，length 0.6m |
|
RF1/2 |
RF1/2 Input Port |
1.85mm female |
|
A |
DC Pin A |
Heater bias electrode, anode (I branch) |
|
B |
DC Pin B |
Heater bias electrode, cathode (I branch) |
|
C |
DC Pin C |
Heater bias electrode, anode (Main MZM) |
|
D |
DC Pin D |
Heater bias electrode, cathode (Main MZM) |
|
E |
DC Pin E |
Heater bias electrode, anode (Q branch) |
|
F |
DC Pin F |
Heater bias electrode, cathode (Qbranch) |
|
G |
DC Pin G |
Spare Heater bias electrode, anode (Main MZM) |
|
H |
DC Pin H |
Spare Heater bias electrode, cathode (Main MZM) |
R-TFLN-UV-IQ-15-20G
| Parameters | Symbol | Performance | Unit |
| Operating Wavelength | λ | 1530~1565 | nm |
| Optical Insertion Loss | IL | ≤ 6 | dB |
| Optical Extinction Ratio | ER | ≥ 25 | dB |
| Optical Return Loss | RL | ≤ -26 | dB |
| Optical Input Power | Pin | ≤ 200 | mW |
| Bandwidth (3dB) | BW | 20 | GHz |
| RF Half-wave Voltage@50KHz | Vπ | ≤ 2.5 | V |
| RF Return Loss | S11 | ≤ -10 | dB |
| RF Input Power | Sin | ≤ 23 | dBm |
| Heater Bias Half-wave Power | Pπ | 50(30) | mW |
| Heater Bias Voltage | Uheater | < 8 | V |
| Operating Temperature | OT | -55~85 | ℃ |
| Storage Temperature | ST | -55~85 | ℃ |
Ordering
| R | TFLN | IQ | XX | XXG | XX | XX |
| Type：
TFLN --- Lithium niobate thin film |
Type：
IQ ---IQ modulator |
Wavelength：
15---1550nm |
Bandwidth：
20G---20GHz 40G---40GHz |
In-Out Fiber type：
PP---PM/PM
|
Optical connector：
FA---FC/APC FP---FC/PC SP---Customization |
