Rof Nanosecond pulsed laser Modulator Laser Light Source ns Pulse Laser module

Short Description:

Rof-PLS series pulse light source (Nanosecond pulse laser)uses a unique short pulse drive circuit to achieve the narrowest pulse output up to 3ns, while using a highly stable laser and a unique APC(automatic power control) and ATC(automatic temperature control) circuit to make the output power and wavelength have high stability and can monitor the temperature, power and other information of the light source in real time. This series of pulse light source is mainly used for MOPA structure fiber laser seed source, spectral analysis, fiber sensing, passive device testing.


Product Detail

Rofea Optoelectronics offer Optical and photonics Electro-optic modulators products

Product Tags

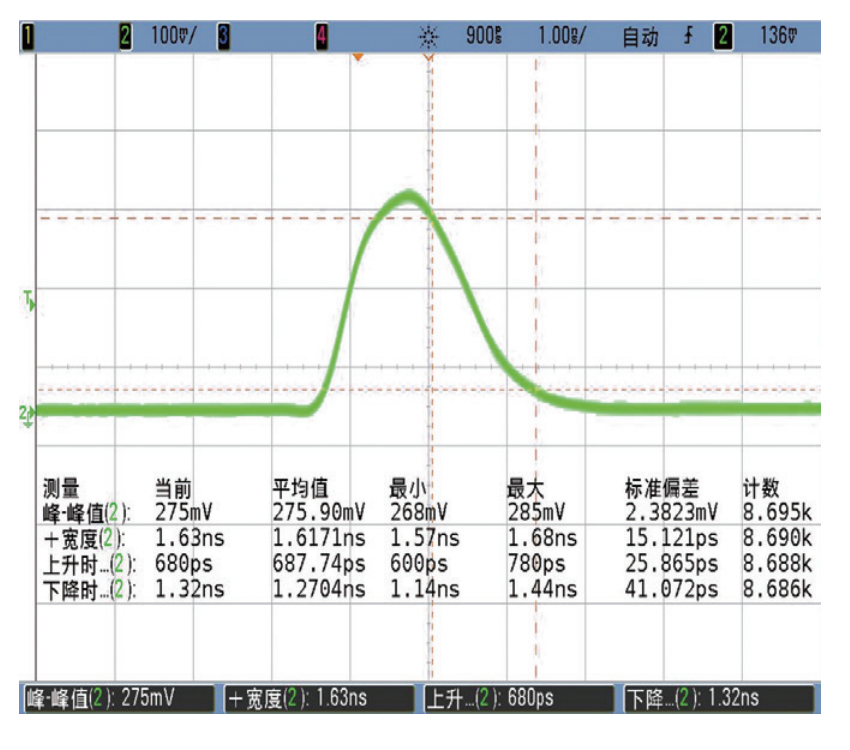

The narrowest pulse is up to 3ns
Pulse width is tunable
Pulse repetition frequency is tunable
Internal trigger and external trigger are optional
Desktop and module package are optional
Can be customized according to customer’s requirements


laser distance measurement
Seed light source
Optical fiber sending
Passive device testing


Parameter index Min Typ Max Unit
Central wavelength 851 852 853 nm
Peak pulse optical power 50 mW
Spectral line width 1 2 nm
Pulse width 3 100 ns

Light pulse repetition frequency

1 1000 KHz
Optical power stability <1 %
Wavelength stability <0.01 nm

Pulse width adjustment accuracy

1 ns

Pulse width adjustment step size

5 ns
Re-adjust the step size 5 KHz
Output optical isolation 30 dB
Optical fiber connector FC/PC、FC/APC or user specified
Optical fiber type HI 780 or62.5µm MMF


1.The peak power can reach up to 25W after adding the pulse amplifier
2.Fiber is available at 10MHz, 50KHz or narrower
3.Optional multi-mode fiber coupling
