ROF-PD1570G InGaAs Photoreceiver High Speed InGaAs Photodetector
Feature
Application

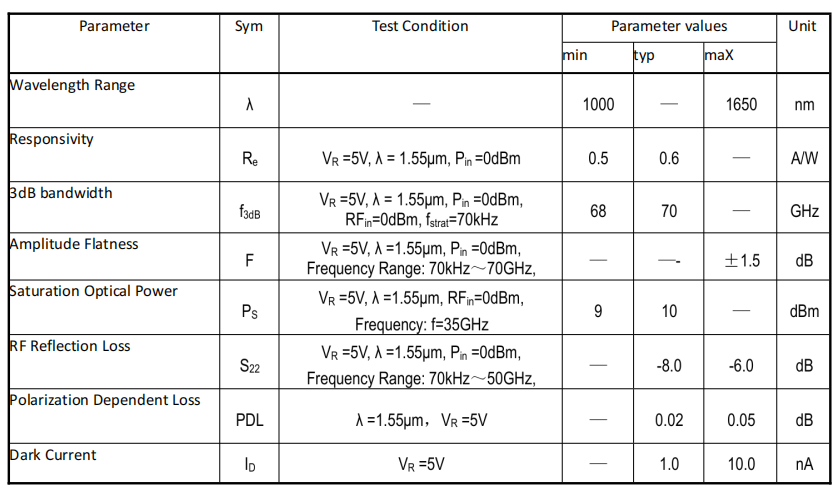

Parameters

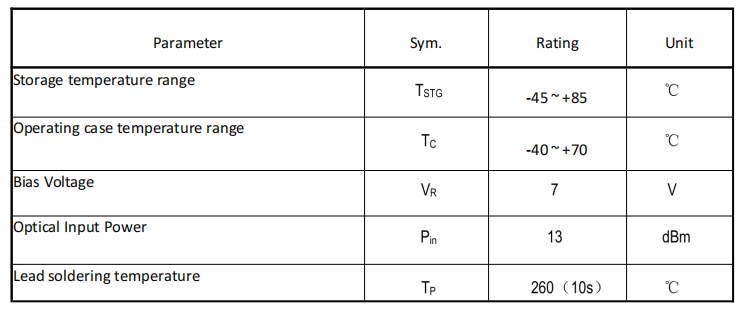

Absolute Maximum Rating (TC = 22±3℃)

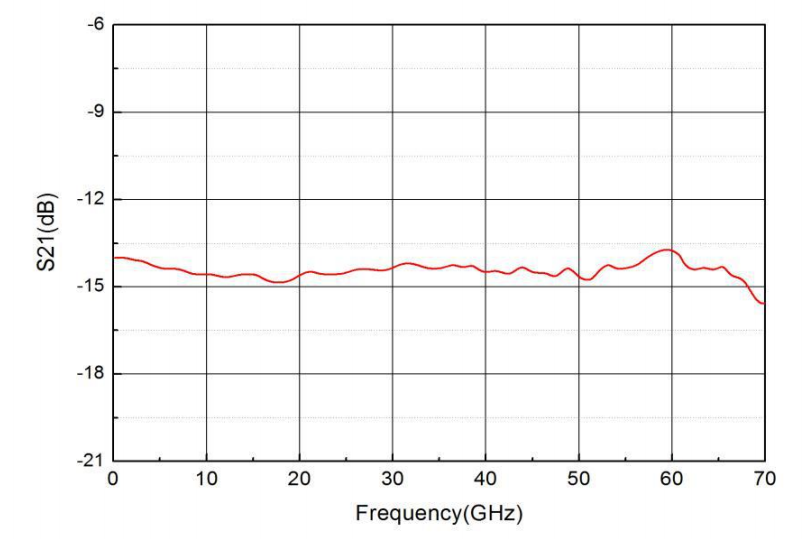

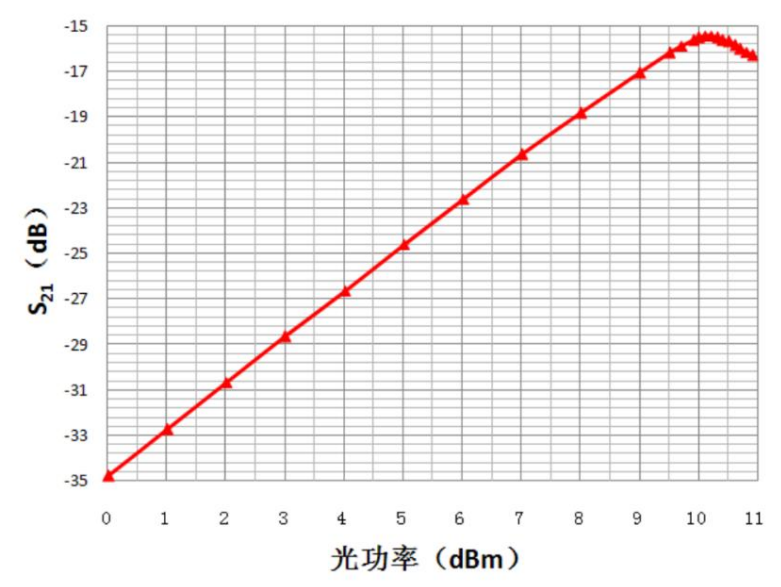

Typical Response Curves :

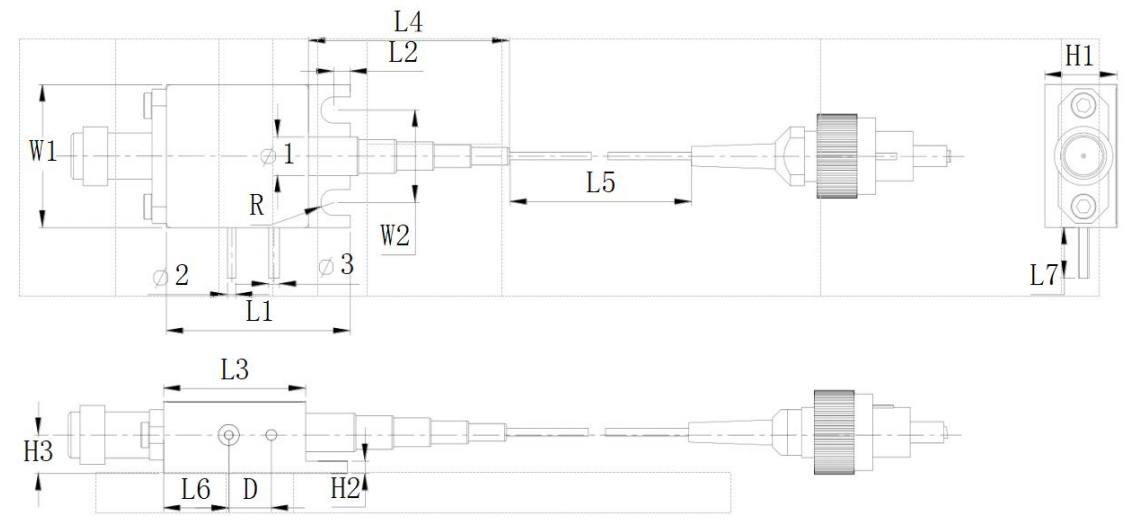

The packages (Unit: mm)

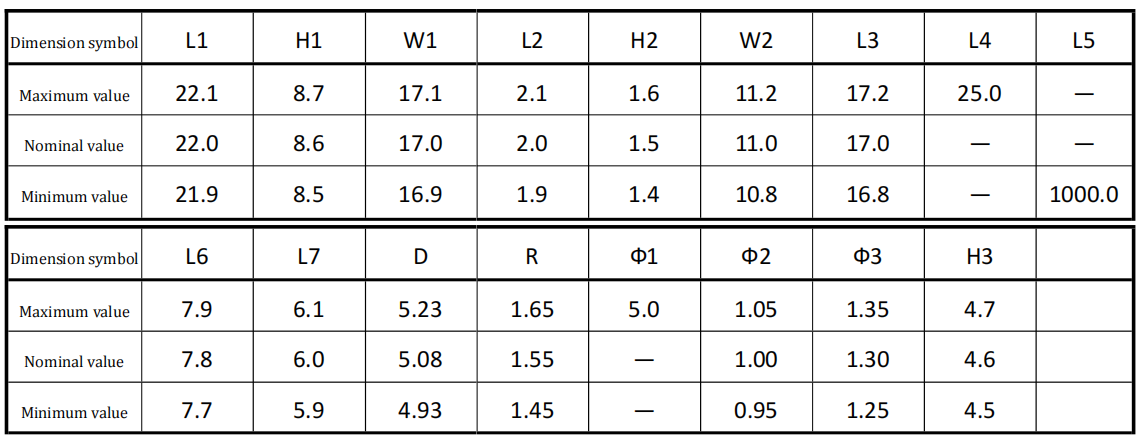

Overall dimensions Unit: mm

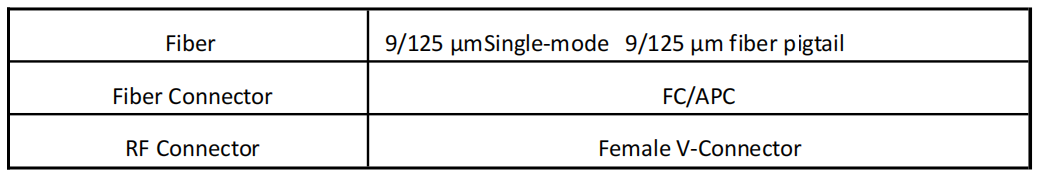

Product Information :
